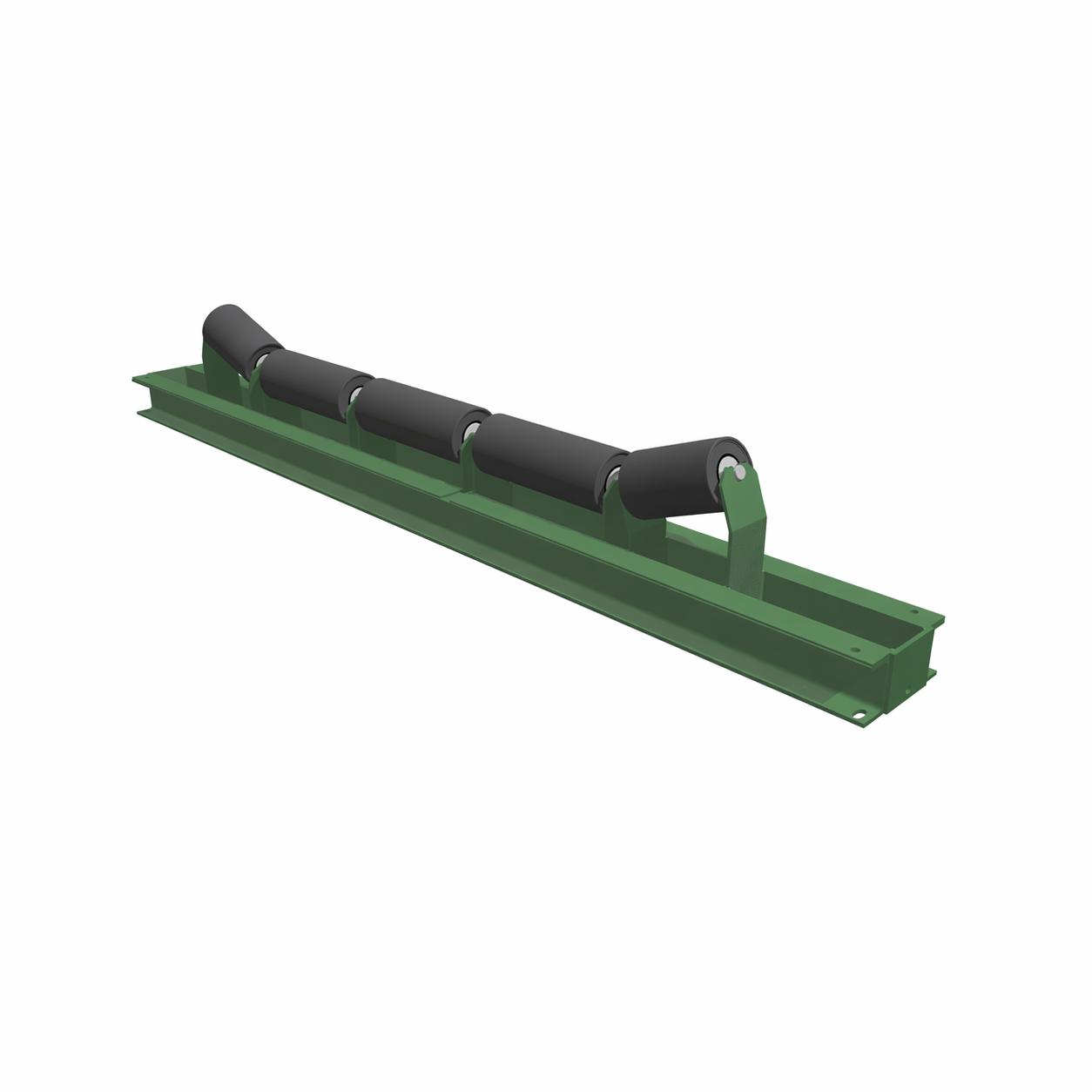

Reliable Belt Support for Picking and Feeding Applications
SEC Business Group Picking Carry Idler Frames are engineered and fabricated to meet or exceed industry standards and specific customer requirements.
Manufactured using advanced production techniques including CNC laser cutting and robotic welding, these frames deliver high levels of strength, accuracy, and durability.
All welding is performed in accordance with AS1554.1 SP welding standards, and strict quality management systems ensure consistent tolerance and manufacturing quality across every frame.
Designed for Picking and Feeding Applications
Picking carry idlers are designed for conveyor applications where a deep troughed belt profile is not required. These frames are commonly used in belt feeders, recycling facilities, and certain food processing conveyors where material on the belt needs to remain accessible for sorting or manual processing.
The configuration provides stable belt support while allowing operators clear access to the conveyed material.
Flexible Roller Configurations
Picking carry idler frames are available in 3-roll, 4-roll, or 5-roll configurations. They typically feature narrower wing rollers compared to the centre roller, allowing effective belt support while maintaining improved access to the belt surface.
Depending on the application requirements, frames can be supplied with standard rollers, impact rollers, or a combination of both to suit specific loading conditions.
Durable Construction and Supply Options
Frames are supplied galvanised as standard for corrosion resistance, with powder-coated options available where additional surface protection or site colour matching is required.
SEC Business Group Picking Carry Idler Frames are available to suit belt widths from 450mm up to 3000mm. Custom designs can also be produced to accommodate specific belt widths, roller types, or conveyor configurations.
A wide range of idler frame types and sizes are held in stock, allowing fast supply when required.
Features & Benefits
- Designed for applications where deep troughing is not required.
- Ideal for belt feeders, recycling systems, and food processing conveyors.
- Available in 3-roll, 4-roll, or 5-roll configurations.
- Narrow wing roller design improves access to material on the belt.
- Compatible with standard rollers, impact rollers, or mixed configurations.
- Manufactured using CNC laser cutting and robotic welding.
- Welding completed to AS1554.1 SP welding standards.
- Galvanised frames supplied as standard, with powder-coated options available.
- Available to suit belt widths from 450mm to 3000mm.
- Custom designs available to suit specific conveyor requirements.
