Description
Reinforced Weather & Oil Resistant Rubber for Stable Gasket & Sealing Applications

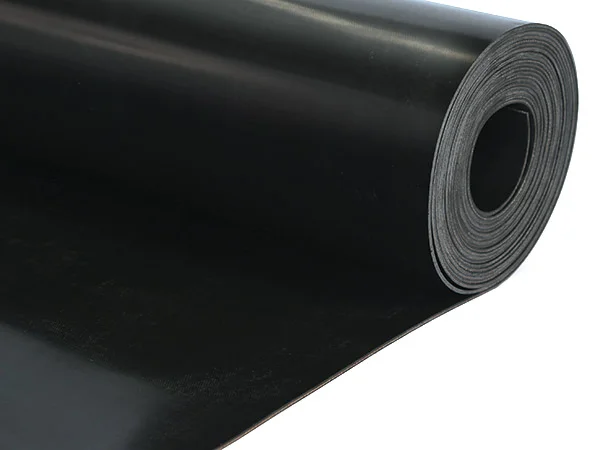

Neoprene 65 Cotton Insertion Rubber Sheet is a premium-grade chloroprene (CR) rubber, reinforced with cotton fabric layers to improve dimensional stability, strength, and durability.
With a hardness of 65 Duro, this material offers a balance of firmness and flexibility, while the cotton reinforcement reduces stretching and deformation, making it ideal for gasket, sealing,
and isolation applications under load.
Designed for Stable Outdoor Sealing Performance
SEC Business Group supplies reinforced neoprene rubber solutions for industrial, construction, and maintenance environments.
This material combines neoprene’s resistance to weather, oils, and environmental exposure with reinforced structure for improved stability in bolted and loaded sealing applications.
Features & Benefits
- Premium 65 Duro neoprene (CR) rubber compound.
- Reinforced with cotton fabric (1 ply / 2 ply options).
- Improved dimensional stability and reduced stretch.
- Excellent resistance to weathering, ozone, and UV exposure.
- Moderate resistance to heat and flame.
- Resistant to oils, fuels, greases, and hydraulic fluids.
- Good resistance to mild acids and alkalis.
- Strong mechanical strength and durability.
- Suitable for indoor and outdoor applications.
- Ideal for gaskets, sealing, and protective linings.
- Available in sheet, strip, or custom-cut formats.
- Supplied by SEC Business Group.
Applications
- Flange gaskets on pipes and tanks
- Equipment and surface linings
- Transfer and joining sleeves
- Flexible expansion joints
- Construction sealing applications
- Curtains and skirts
- Insulating strips
- Isolation barriers
- Applications requiring stability under load and outdoor durability
Performance Advantages
- Reduced creep and deformation under pressure.
- Maintains shape in gasket and bolted applications.
- Provides reliable performance in outdoor and exposed environments.
- Combines oil resistance with structural reinforcement.
Technical Information
| Property | Value | Standard |
|---|---|---|
| Polymer | CR | |
| Polymer Content | 30% | |
| Reinforcement | Cotton | |
| Colour | Black (smooth back) | |
| Specific Gravity | 1.35 | ASTM D297 |
| Hardness | 65° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 7 MPa (min) | ASTM D412 |
| Elongation @ Break | 300% (min) | ASTM D412 |
| Abrasion | 400 mm³ (max) @ 10N | ASTM D5963 |
| Compression Set | 32% | ASTM D395 B |
| Tear Strength | 25 N/mm (min) | ASTM D624 |
| Temperature Range | -25°C to +80°C |
Available Sizes
| Description | Weight (Per L/M) |
|---|---|
| 1.5mm × 1200mm × 1 Ply Cotton Reinforced (10 L/M Rolls) | 2.5 kg |
| 3mm × 1200mm × 1 Ply Cotton Reinforced (10 L/M Rolls) | 4.9 kg |
| 4.5mm × 1200mm × 2 Ply Cotton Reinforced (10 L/M Rolls) | 7.5 kg |
| 6mm × 1200mm × 2 Ply Cotton Reinforced (10 L/M Rolls) | 10.0 kg |
Custom Options
Neoprene 65 Cotton Insertion Rubber Sheet can be supplied as:
- Cut lengths and strips
- Gaskets and pads
- Custom-cut profiles
- Fabricated rubber components
Supply
This product is supplied by SEC Business Group.
For sizing, fabrication, or application advice, please contact SEC Business Group.
