Description
Ultra-Tough Reinforced Rubber for Curtains, Flaps & Impact Protection

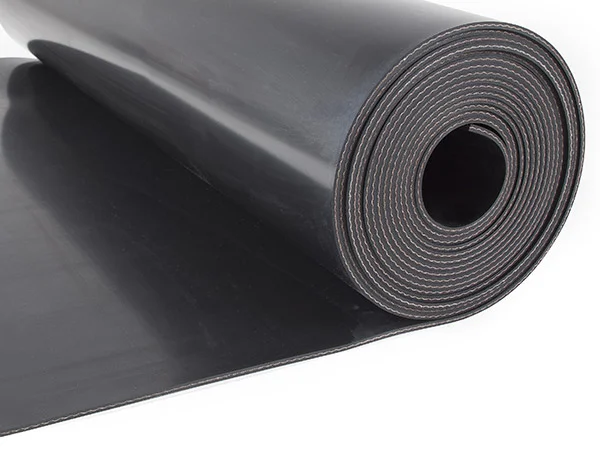

Natural Heavy Duty Nylon Insertion Rubber Sheet is a premium-grade NR/SBR rubber sheet, reinforced with high-strength nylon fabric to deliver exceptional tear resistance, durability, and toughness.
With a hardness of 65 Duro, this material combines flexibility with extreme strength, making it ideal for hanging, impact, and protective applications where standard rubber or light reinforcement is insufficient.
Designed for Demanding Environments
Engineered for demanding environments, this heavy-duty reinforced rubber provides reliable performance in applications exposed to repeated movement, impact, and harsh operating conditions.
SEC Business Group supplies reinforced rubber solutions for industrial, agricultural, and heavy-duty applications.
Features & Benefits
- Premium 65 Duro NR/SBR rubber compound.
- Reinforced with high-strength nylon fabric.
- Exceptional tear and cut resistance.
- Designed for heavy-duty flexible applications.
- High resistance to impact and mechanical stress.
- Maintains shape and integrity under repeated movement.
- Suitable for indoor and outdoor environments.
- Resistant to ozone, UV, and weathering.
- Ideal for mechanically fastened applications.
- Available in sheet, strip, or custom-cut formats.
- Supplied by SEC Business Group.
Applications
- Vehicle mudguards and splash guards
- Heavy machinery flaps and protective curtains
- Dust seals and containment covers
- Isolation barriers and protective screens
- Agricultural equipment flaps
- Equine dividers and barriers
- Sporting and industrial safety protection
- Any application requiring high-strength flexible rubber
Performance Advantages
- Extremely high tear strength for demanding environments.
- Withstands repeated flexing and impact.
- Maintains performance in dynamic and hanging applications.
- Provides long-term durability under mechanical stress.
Technical Information
| Property | Value | Standard |
|---|---|---|
| Polymer | NR/SBR | |
| Reinforcement | Heavy Duty Nylon | |
| Colour | Black | |
| Specific Gravity | 1.35 | ASTM D297 |
| Hardness | 65° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 7 MPa (min) | ASTM D412 |
| Elongation @ Break | 350% (min) | ASTM D412 |
| Abrasion | 300 mm³ (max) @ 10N | ASTM D5963 |
| Temperature Range | -25°C to +70°C |
Available Sizes
| Part Number | Description | Weight (Per L/M) |
|---|---|---|
| NNRI3X1 | 3mm × 1200mm × 1 Ply HD Nylon Reinforced (10 L/M Rolls) | 4.4 kg |
| NNRI6X1 | 6mm × 1200mm × 1 Ply HD Nylon Reinforced (10 L/M Rolls) | 8.7 kg |
| NNRI8X1 | 8mm × 1200mm × 1 Ply HD Nylon Reinforced (10 L/M Rolls) | 11.5 kg |
Custom Options
Natural Heavy Duty Nylon Insertion Rubber Sheet can be supplied as:
- Custom-cut strips and sheets
- Curtains and flap sections
- Protective barriers and guards
- Fabricated rubber components
Designed for mechanical fixing and high-strength applications.
Supply
This product is supplied by SEC Business Group.
For sizing, fabrication, or application advice, please contact SEC Business Group.
