Durable Cover Compounds for Demanding Conveyor Applications

SEC Business Group supplies a range of conveyor belt cover compounds engineered for abrasion, tear, cut, and gouge resistance.

Multiple Ply and Cover Options Available

Conveyor belts are available in multiple ply constructions, widths, and cover thicknesses to suit light, medium, and heavy-duty conveying applications.

Built for Long Service Life

High adhesion between plies, low elongation, smooth finish, and strong abrasion resistance help deliver improved field performance and longer belt life.

Category:

Description

Cover Compounds

SEC Business Group supplies conveyor belt cover compounds specifically formulated to deliver high physical properties including abrasion resistance, tear resistance, cut resistance, and gouge resistance.

Five standard cover grades are available in natural and SBR synthetic rubber compounds, with specialised grades also available for heat, food, and chemical resistant applications.

Grade Material Properties
N Grade Predominantly SBR rubber Good all-purpose properties
M Grade Natural rubber polymer Excellent resistance to cut and tear
E Grade Polymer blend Specially compounded to have anti-static properties
SAR Grade Polymer blend Excellent abrasion resistance
XC Grade Polymer blend Superior resistance to cut and gouge

For specialised applications such as heat, food, or chemical resistance, contact SEC Business Group for further advice.

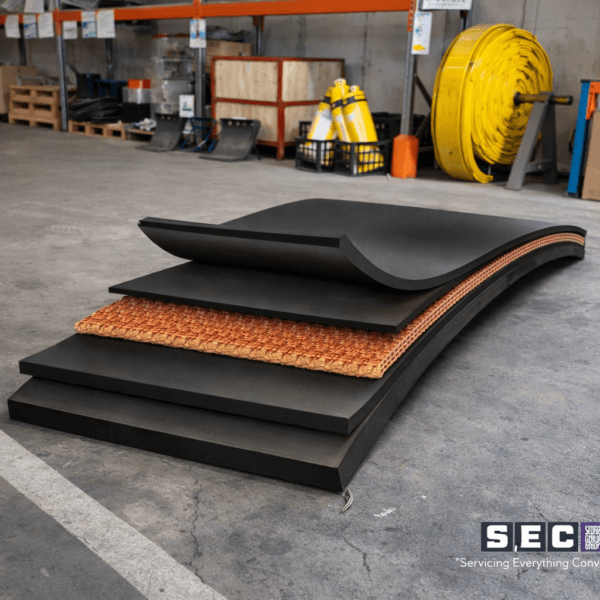

Conveyor Belt Ply, Widths and Cover Thicknesses

Ply Options

Belts can be manufactured in 2, 3, or 4 ply constructions. Two-ply belts are generally used for lighter industrial environments such as recycling plants, three-ply belts suit light to medium applications such as mobile crushers, and four-ply belts are used in heavy-duty environments such as mining and brickworks.

Available Widths

Stocked belt widths range from 350mm up to 2400mm without longitudinal joints. Higher widths can be produced on request.

Cover Thicknesses

Stocked thicknesses range from 1.5mm to 21mm top cover and 1.5mm to 7mm bottom cover. Higher thicknesses can also be produced on request.

Five-ply constructions are also available on request for more demanding conveying applications.

Performance Features

Our premium quality conveyor belt fabric is available in a range of options and is used across a wide variety of material handling applications.

  • High adhesion levels between covers and plies
  • Low elongation characteristics
  • Smooth surface finish
  • Excellent resistance to abrasive materials
  • Improved field performance and service life
