Description
Low-Friction Belt Support for Conveyor Systems

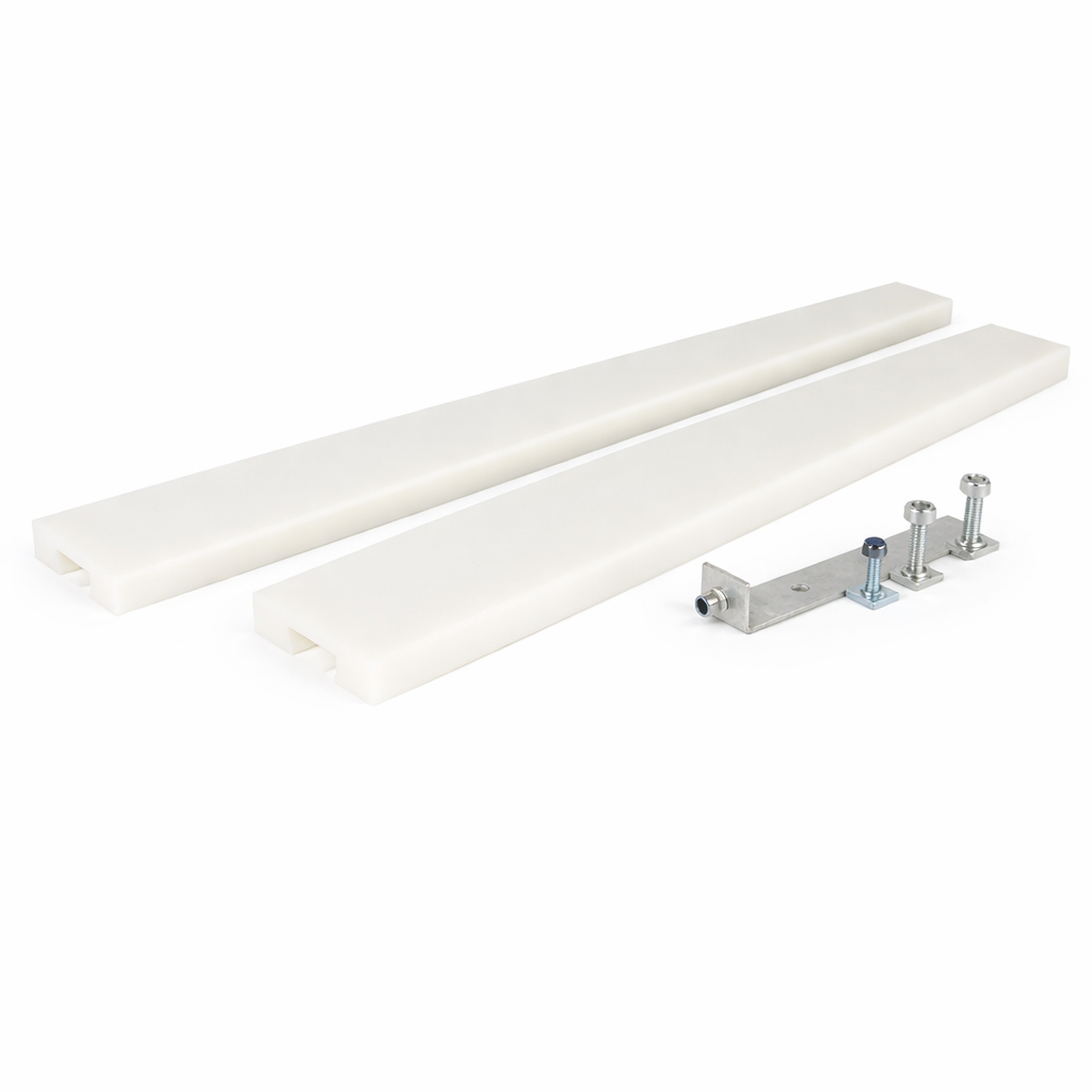

Conveyor Slider Bars are premium-grade UHMWPE support bars, designed to provide low-friction sliding support for conveyor belts across a wide range of applications.
Manufactured from high-quality UHMWPE (Ultra High Molecular Weight Polyethylene), these bars offer excellent wear resistance and reduced surface friction, allowing conveyor belts to move smoothly even under load.
Improved Efficiency and Reduced Belt Wear
The low-friction surface helps minimise belt wear and reduce system drag, improving conveyor efficiency and lowering energy consumption.
SEC Business Group slider bar solutions to support conveyor performance across mining, quarrying, and bulk material handling industries.
Features & Benefits
- High-grade UHMWPE construction for long wear life.
- Provides low-friction belt support for smooth operation.
- Reduces belt wear and system drag.
- Improves conveyor efficiency under load.
- Profiled T-slot design for easy installation.
- Compatible with T-bolt fastening systems.
- Suitable for new installations or retrofit applications.
- Lightweight and easy to handle.
- Available with adaptor plates to suit standard trough rollers.
- Supplied by SEC Business Group.
Technical Information
| Property | Value | Standard |
|---|---|---|
| Polymer | UHMWPE | |
| Colour | White | |
| Specific Gravity | 0.935 | ASTM D297 |
| Hardness | 66 Shore D | ASTM D2240 |
Available Sizes
Conveyor Slider Bars and adaptor plates are available in a range of standard sizes. Slider bars can also be cut to length to suit specific conveyor or loading zone requirements.
Slider Bars
| Part Number | Description | Weight (Each) |
|---|---|---|
| SB0100 | 25mm × 100mm × 2000mm C/W Routed T-Track Slot | 3.8 kg |
| SB0150 | 25mm × 150mm × 2000mm C/W Routed T-Track Slot | 6.2 kg |
Adaptor Plates
| Part Number | Description | Weight (Each) |
|---|---|---|
| SBA0600 | Adaptor to suit 600mm belt width | 10.2 kg |
| SBA0750 | Adaptor to suit 750mm belt width | 10.2 kg |
| SBA0900 | Adaptor to suit 900mm belt width | 10.2 kg |
| SBA1200 | Adaptor to suit 1200mm belt width | 10.2 kg |
Product information sheets available on request.
Design & Installation
- Integrated T-slot profiles for simple mounting
- Compatible with T-bolt fastening systems
- Optional adaptor plates for installation onto standard trough roller frames
- Ideal for new conveyor builds or retrofit upgrades
Applications
- Conveyor carry side support
- Loading and transfer zones
- High-wear or high-friction areas
- Mining and bulk material handling
- Quarrying and processing plants
- Any application requiring low-friction belt support
Supply
This product is supplied by SEC Business Group.
For sizing, compatibility, or pricing, please contact SEC Business Group.
